Stainless Steel ERW Tube Exporter, Stainless Steel ERW Tube Trader, Stainless Steel ERW Cold Rolled Tube Dealer, Stainless Steel ERW Tube Supplier & Stockist in India

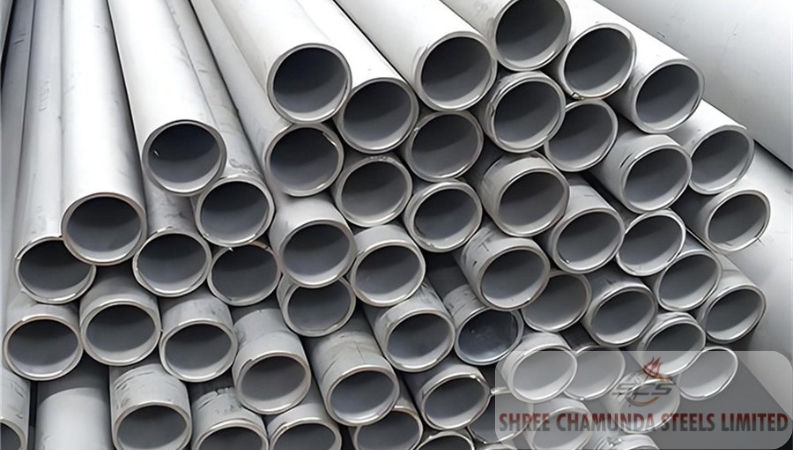

Shree Chamunda Steels LTD is a reputed Stainless Steel ERW Tube Manufacturer in India. Supplying high-quality Stainless Steel ERW Hot Rolled Tube products that are of high industrial standards. Our Stainless Steel ERW Tubes come in sizes 1/2 to 24 NB, up to 10mm thickness, which makes them suitable for various engineering and structural uses. The material has balanced chemical compositions and contains elements carbon, manganese, phosphorus, sulphur, silicon, chromium (18.0 20.0 ), and nickel. Our Stainless Steel ERW Tubes are famous for being of high strength and durability.
Stainless Steel ERW Tube Trader, Stainless Steel ERW Rectangular Tube Distributor, Stainless Steel ERW Round Tube At Lowest Price, Stainless Steel ERW Exhaust Tube Manufactuer, Stainless Steel 304 Tube Supplier in India
Specification Of Stainless Steel ERW Tube
| Stainless Steel ERW Tube | Specification |
| Standards | ASTM A 312/ ASME SA 312/ A790/ SA790/ EN10216-5 |
| Grades | 304L, 304, 309S, 316, 316L, 310S, 310 |
| Size | ½” to 24” NB |
| Schedule | Sch 5s, Sch 10s, Sch 20s, Sch 40s, Sch 80s, Sch XXS |
| OD Size Pipe | 10.30mm to 254mm as per requirement |
| Thickness | Up to 10mm |
| Types | As Welded, EFW, ERW |
| Manufacturing Shapes | Round, Square, Rectangle, Box Section |
| SS ERW Pipe Surface Finish | Cold Finish, Matt Finish, Bright, Polished, Annealing, Pickling, Mirror Finish, or as per requirements |
| Length | 20ft (Standard) & As per Customer Requirement |
Grades Of Stainless Steel ERW Tube Available
Stainless Steel ERW Exhaust Tube
Stainless Steel ERW Cold Rolled Tube
Stainless Steel 304 ERW Tube
Stainless Steel ERW Round Tube
Stainless Steel ERW Hot Rolled Tube
Stainless Steel 316 ERW Tube
Engineered for performance, built for industry — Shree Chamunda Steels LTD, Stainless Steel ERW Tube Manufacturer in India.
Shree Chamunda Steels LTD
Applications Of Stainless Steel ERW Tube
Paper & Pulp Industries
Automobile Industries
Oil & Gass Industries
Chemical Industries
Medical Industries
Aerospace Industries
Manufacturing Process Of ASTM Stainless Steel ERW Tube
Schedule Chart Of Stainless Steel ERW Tube
| Nominal Broe | Outside Diameter | Sch 5s | Sch 10s | Sch 40s | Sch 80s | Sch 160s | Sch XXS | |||||||
| mm | INCH | mm | Wt mm | Weight (Kg/mt) | Wt mm |
Weight (Kg/mt) | Wt mm |
Weight (Kg/mt) | Wt mm |
Weight (Kg/mt) | Wt mm | Weight (Kg/mt) | Wt mm |
Weight (Kg/mt) |
| 3 | 1/8 | 10.3 | 1.24 | 0.276 | 1.24 | 028 | 1.73 | 0.37 | 2.41 | 0.47 | - | - | - | - |
| 6 | 1/4 | 13.7 | 1.24 | 0.390 | 1.65 | 049 | 2.24 | 0.631 | 3.02 | .0.80 | - | - | - | - |
| 10 | 3/8 | 17.1 | 1.24 | 0.490 | 1.65 | 0.63 | 2.31 | 0.845 | 3.20 | 1.10 | - | - | - | - |
| 15 | 1/2 | 21.3 | 1.65 | 0.800 | 2.11 | 1.00 | 2.77 | 1.27 | 3.75 | 1.62 | 4.75 | 1.94 | 7.47 | 2.55 |
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 2.11 | 1.28 | 2.87 | 1.68 | 3.91 | 2.20 | 5.54 | 2.89 | 7.82 | 3.63 |
| 25 | 1 | 33.4 | 1.65 | 1.30 | 2.77 | 2.09 | 3.38 | 2.50 | 4.55 | 3.20 | 6.35 | 4.24 | 9.09 | 5.45 |
| 32 | 1.1/4 | 42.2 | 1.65 | 1.65 | 2.77 | 2.70 | 3.56 | 3.38 | 4.85 | 4.47 | 6.35 | 5.61 | 9.70 | 7.77 |
| 40 | 1.1/2 | 48.3 | 1.65 | 1.91 | 2.77 | 3.11 | 3.68 | 4.05 | 5.08 | 5.41 | 7.14 | 7.25 | 10.16 | 9.54 |
| 50 | 2 | 60.3 | 1.65 | 2.40 | 2.77 | 3.93 | 3.91 | 5.44 | 5.54 | 7.48 | 8.74 | 11.1 | 11.07 | 13.44 |
| 65 | 2.1/2 | 73.0 | 2.11 | 3.69 | 3.05 | 5.26 | 5.16 | 8.63 | 7.01 | 11.4 | 9.53 | 14.9 | 14.2 | 20.39 |
| 80 | 3 | 88.9 | 2.11 | 4.51 | 3.05 | 6.45 | 5.49 | 11.30 | 7.62 | 15.2 | 11.1 | 21.3 | 15.24 | 27.65 |
| 100 | 4 | 114.3 | 2.11 | 5.84 | 3.05 | 8.36 | 6.02 | 16.07 | 8.56 | 22.3 | 13.49 | 33.54 | 17.12 | 41.03 |
| 125 | 5 | 141.3 | 2.77 | 9.47 | 3.40 | 11.57 | 6.55 | 21.80 | 9.53 | 31.97 | 15.88 | 49.11 | 19.05 | 57.43 |
| 150 | 6 | 168.3 | 2.77 | 11.32 | 3.40 | 13.84 | 7.11 | 28.30 | 10.97 | 42.7 | 18.2 | 67.56 | 21.95 | 79.22 |
| 200 | 8 | 219.1 | 2.77 | 14.79 | 3.76 | 19.96 | 8.18 | 42.60 | 12.7 | 64.6 | 23.0 | 111.2 | 22.23 | 107.8 |
| 250 | 10 | 273.1 | 3.40 | 22.74 | 4.19 | 28.00 | 9.27 | 60.50 | 15.1 | 96.0 | 28.6 | 173.0 | 25.40 | 155.15 |
| 300 | 12 | 323.9 | 3.96 | 31.50 | 4.57 | 36.00 | 10.30 | 79.80 | 17.5 | 132.0 | 33.32 | 238.76 | 25.40 | 186.97 |
| 350 | 14 | 355.6 | 3.96 | 34.36 | 4.78 | 41.3 | 11.13 | 94.59 | 19.05 | 158.08 | 35.71 | 281.70 | - | - |
| 400 | 16 | 406.4 | 4.19 | 41.56 | 6.35 | 62.64 | 12.7 | 123.30 | 21.41 | 203.33 | 40.46 | 365.11 | - | - |
| 450 | 18 | 457.2 | 4.19 | 46.80 | 4.78 | 53.42 | 14.27 | 155.80 | 23.8 | 254.36 | 45.71 | 466.40 | - | - |
| 500 | 20 | 508.0 | 4.78 | 59.25 | 5.54 | 68.71 | 15.09 | 183.42 | 26.19 | 311.2 | 49.99 | 564.68 | - | - |
| 600 | 24 | 609.6 | 5.54 | 82.47 | 6.35 | 94.45 | 17.48 | 255.41 | 30.96 | 442.08 | 59.54 | 808.22 | - | - |
Chemical Properties Of Stainless Steel ERW Tube
| A312 GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S3040 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2.0 | 0.045 | 0.030 | 1.0 | 18.0-20.0 | 8.0-13.0 | ||||
| TP304L | S30409 | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304N | S30451 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 18.0-20.0 | 8.0-18.0 | 0.10-0.16 | |||
| TP304LN | S30453 | 0.035 | 2.0 | 0.045 | 0.030 | 1.0 | 18.0-20.0 | 8.0-12.0 | 0.10-0.16 | |||
| TP309S | S30908 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 22.0-24.0 | 12.0-15.0 | 0.75 | |||
| TP309H | S30909 | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 22.0-24.0 | 12.0-15.0 | ||||
| TP309Cb | S30940 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 22.0-24.0 | 12.0-16.0 | 0.75 | 10xC min 1.10 max |
||
| TP309HCb | S30941 | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 22.0-24.0 | 12.0-16.0 | 0.75 | 10xC min 1.10 max |
||
| TP310S | S3108 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 24.0-26.0 | 19.0-22.0 | 0.75 | |||
| TP310H | S3109 | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 24.0-26.0 | 19.0-22.0 | ||||
| TP310Cb | S31040 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 24.0-26.0 | 19.0-22.0 | 0.75 | 10xC min 1.10 max |
||
| TP310HCb | S31041 | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 24.0-26.0 | 19.0-22.0 | 0.75 | 10xC min 1.10 max |
||
| TP316 | S3160 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2.0 | 0.045 | 0.030 | 1.0 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |||
| TP316H | S31609 | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316Ti | S31635 | 0.08 | 2.0 | 0.045 | 0.030 | 0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 5x (C-N) -0.70 |
0.10 | |
| TP316N | S31651 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.10-0.16 | ||
| TP316LN | S31653 | 0.035 | 2.0 | 0.045 | 0.030 | 1.0 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | 0.10-0.16 | ||
| TP317 | S3170 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 18.0-20.0 | 10.0-14.0 | 3.0-4.0 | |||
| TP317L | S31703 | 0.035 | 2.0 | 0.045 | 0.030 | 1.0 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 | |||
| TP321 | S3210 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 17.0-19.0 | 9.0-12.0 | 0.10 | |||
| TP321H | S32109 | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 17.0-19.0 | 9.0-12.0 | 0.10 | |||
| TP347 | S3470 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 17.0-19.0 | 9.0-13.0 | ||||
| TP347H | S34709 | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 17.0-19.0 | 9.0-13.0 | ||||
| TP347LN | S34751 | 0.05-0.02 | 2.0 | 0.045 | 0.030 | 1.0 | 17.0-19.0 | 9.0-13.0 | 0.20- 50.0 |
0.06-0.10 | ||
| TP348 | S3480 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 17.0-19.0 | 9.0-13.0 | ||||
| TP348H | S34809 | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 17.0-19.0 | 9.0-13.0 |
