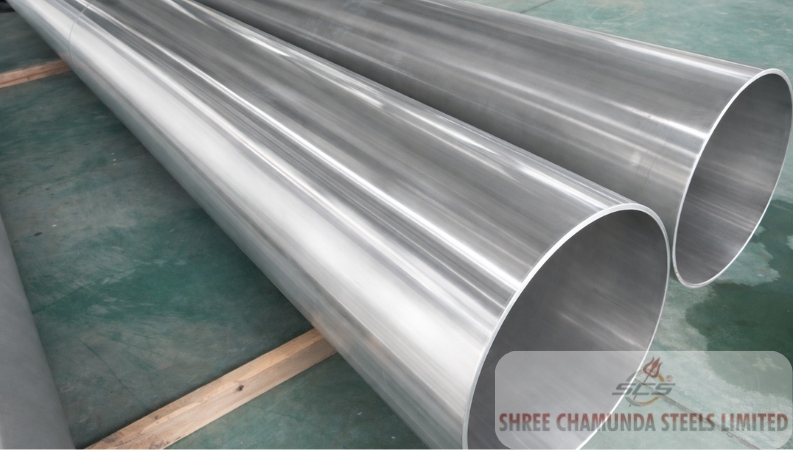

Stainless Steel Welded Pipe and Tube Manufactuer in India

Stainless Steel Welded Pipe and Tube Manufacturer, Supplier & Stockist in India

Shree Chamunda Steels LTD is a major Stainless Steel Welded Pipe and Tube Manufacturer that manufactures Stainless Steel 304H Welded Pipe and Tube that are durable and used in industries. We supply ASTM SS 310S Welded Pipe and Tube, which is manufactured using a advance process and material (SS coil forming, precision welding, and solution annealing). We have large stock of Stainless Steel 316L Welded Pipe and Tube, which is supplied in a various size and length (customized) to suit the project needs of a particular project.

Stainless Steel Welded Pipe and Tube Weight Chart, AISI 304 Welded Tube Price, SS Seamles Welded Tube Supplier in India

Specification Of Stainless Steel Welded Pipe And Tube

Stainless Steel ERW Pipe	Specification
Standards	ASTM A 312/ ASME SA 312/ A790/ SA790/ EN10216-5
Grades	304L, 304, 309S, 316, 316L, 310S, 310
NB Size Pipe	½” to 24” NB
Schedule	Sch 5s, Sch 10s, Sch 20s, Sch 40s, Sch 80s, Sch XXS
OD Size Pipe	10.30mm to 254mm as per requirement
Thickness	Up to 10mm
Types	As Welded, EFW, ERW
Manufacturing Shapes	Round, Square, Rectangle, Box Section
SS ERW Pipe Surface Finish	Cold Finish, Matt Finish, Bright, Polished, Annealing, Pickling, Mirror Finish, or as per requirements
Length	20ft (Standard) & As per Customer Requirement

Grades Of Stainless Steel Welded Pipe and Tube Available

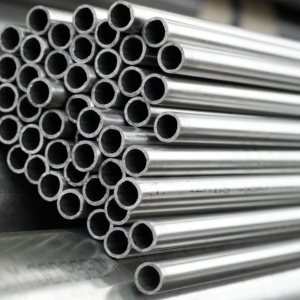

ASTM A312 Stainless Steel 304 Welded Pipe and Tube

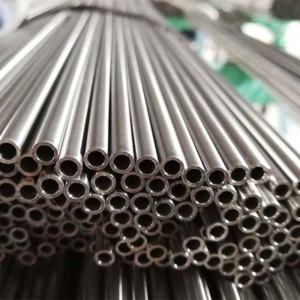

ASTM A312 Stainless Steel 304L Welded Pipe and Tube

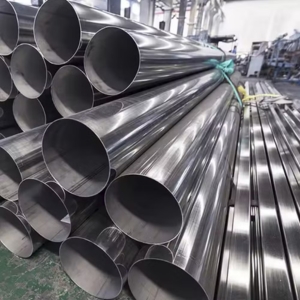

ASTM A312 Stainless Steel 316 Welded Pipe and Tube

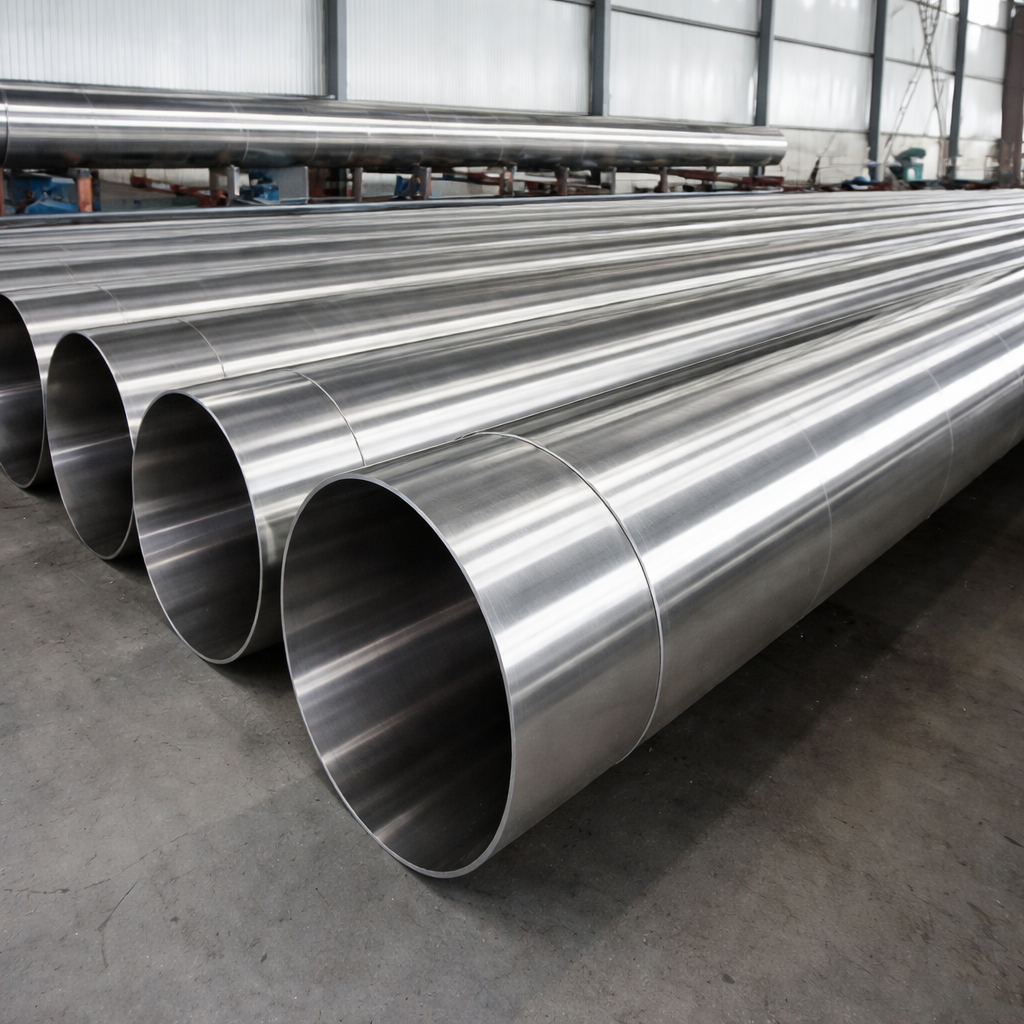

ASTM A312 Stainless Steel 316L Welded Pipe and Tube

ASTM A312 Stainless Steel 310S Welded Pipe and Tube

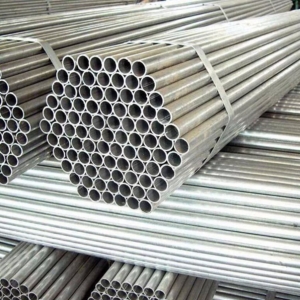

ASTM A312 Stainless Steel 321 Welded Pipe and Tube

ASTM A312 Stainless Steel 317L Welded Pipe and Tube

Engineered for performance, built for industry — Shree Chamunda Steels LTD, Stainless Steel Welded Pipe And Tube Manufacturer in India.
Shree Chamunda Steels LTD

Applications Of Stainless Steel Welded Pipe And Tube

Paper & Pulp Industries

Automobile Industries

Oil & Gass Industries

Chemical Industries

Medical Industries

Aerospace Industries

Manufacturing Process Of Stainless Steel Welded Pipe And Tube

Schedule Chart Of Stainless Steel Welded Pipe & Tube

Nominal Broe		Outside Diameter	Sch 5s		Sch 10s		Sch 40s		Sch 80s		Sch 160s		Sch XXS
mm	INCH	mm	Wt mm	Weight (Kg/mt)	Wt mm	Weight (Kg/mt)	Wt mm	Weight (Kg/mt)	Wt mm	Weight (Kg/mt)	Wt mm	Weight (Kg/mt)	Wt mm	Weight (Kg/mt)
3	1/8	10.3	1.24	0.276	1.24	028	1.73	0.37	2.41	0.47	-	-	-	-
6	1/4	13.7	1.24	0.390	1.65	049	2.24	0.631	3.02	.0.80	-	-	-	-
10	3/8	17.1	1.24	0.490	1.65	0.63	2.31	0.845	3.20	1.10	-	-	-	-
15	1/2	21.3	1.65	0.800	2.11	1.00	2.77	1.27	3.75	1.62	4.75	1.94	7.47	2.55
20	3/4	26.7	1.65	1.03	2.11	1.28	2.87	1.68	3.91	2.20	5.54	2.89	7.82	3.63
25	1	33.4	1.65	1.30	2.77	2.09	3.38	2.50	4.55	3.20	6.35	4.24	9.09	5.45
32	1.1/4	42.2	1.65	1.65	2.77	2.70	3.56	3.38	4.85	4.47	6.35	5.61	9.70	7.77
40	1.1/2	48.3	1.65	1.91	2.77	3.11	3.68	4.05	5.08	5.41	7.14	7.25	10.16	9.54
50	2	60.3	1.65	2.40	2.77	3.93	3.91	5.44	5.54	7.48	8.74	11.1	11.07	13.44
65	2.1/2	73.0	2.11	3.69	3.05	5.26	5.16	8.63	7.01	11.4	9.53	14.9	14.2	20.39
80	3	88.9	2.11	4.51	3.05	6.45	5.49	11.30	7.62	15.2	11.1	21.3	15.24	27.65
100	4	114.3	2.11	5.84	3.05	8.36	6.02	16.07	8.56	22.3	13.49	33.54	17.12	41.03
125	5	141.3	2.77	9.47	3.40	11.57	6.55	21.80	9.53	31.97	15.88	49.11	19.05	57.43
150	6	168.3	2.77	11.32	3.40	13.84	7.11	28.30	10.97	42.7	18.2	67.56	21.95	79.22
200	8	219.1	2.77	14.79	3.76	19.96	8.18	42.60	12.7	64.6	23.0	111.2	22.23	107.8
250	10	273.1	3.40	22.74	4.19	28.00	9.27	60.50	15.1	96.0	28.6	173.0	25.40	155.15
300	12	323.9	3.96	31.50	4.57	36.00	10.30	79.80	17.5	132.0	33.32	238.76	25.40	186.97
350	14	355.6	3.96	34.36	4.78	41.3	11.13	94.59	19.05	158.08	35.71	281.70	-	-
400	16	406.4	4.19	41.56	6.35	62.64	12.7	123.30	21.41	203.33	40.46	365.11	-	-
450	18	457.2	4.19	46.80	4.78	53.42	14.27	155.80	23.8	254.36	45.71	466.40	-	-
500	20	508.0	4.78	59.25	5.54	68.71	15.09	183.42	26.19	311.2	49.99	564.68	-	-
600	24	609.6	5.54	82.47	6.35	94.45	17.48	255.41	30.96	442.08	59.54	808.22	-	-

Chemical Properties Of Stainless Steel Welded Pipe & Tube Fittings

A312 GRADES	UNS	C	Mn	P	S	Si	Cr	Ni	Mo	Ti	Nb	N
TP304	S3040	0.08	2.0	0.045	0.030	1.0	18.0-20.0	8.0-11.0
TP304L	S30403	0.035	2.0	0.045	0.030	1.0	18.0-20.0	8.0-13.0
TP304H	S30409	0.04-0.10	2.0	0.045	0.030	1.0	18.0-20.0	8.0-11.0
TP304N	S30451	0.08	2.0	0.045	0.030	1.0	18.0-20.0	8.0-18.0				0.10-0.16
TP304LN	S30453	0.035	2.0	0.045	0.030	1.0	18.0-20.0	8.0-12.0				0.10-0.16
TP309S	S30908	0.08	2.0	0.045	0.030	1.0	22.0-24.0	12.0-15.0	0.75
TP309H	S30909	0.04-0.10	2.0	0.045	0.030	1.0	22.0-24.0	12.0-15.0
TP309Cb	S30940	0.08	2.0	0.045	0.030	1.0	22.0-24.0	12.0-16.0	0.75		10xC min 1.10 max
TP309HCb	S30941	0.04-0.10	2.0	0.045	0.030	1.0	22.0-24.0	12.0-16.0	0.75		10xC min 1.10 max
TP310S	S3108	0.08	2.0	0.045	0.030	1.0	24.0-26.0	19.0-22.0	0.75
TP310H	S3109	0.04-0.10	2.0	0.045	0.030	1.0	24.0-26.0	19.0-22.0
TP310Cb	S31040	0.08	2.0	0.045	0.030	1.0	24.0-26.0	19.0-22.0	0.75		10xC min 1.10 max
TP310HCb	S31041	0.04-0.10	2.0	0.045	0.030	1.0	24.0-26.0	19.0-22.0	0.75		10xC min 1.10 max
TP316	S3160	0.08	2.0	0.045	0.030	1.0	16.0-18.0	11.0-14.0	2.0-3.0
TP316L	S31603	0.035	2.0	0.045	0.030	1.0	16.0-18.0	10.0-14.0	2.0-3.0
TP316H	S31609	0.04-0.10	2.0	0.045	0.030	1.0	16.0-18.0	11.0-14.0	2.0-3.0
TP316Ti	S31635	0.08	2.0	0.045	0.030	0.75	16.0-18.0	10.0-14.0	2.0-3.0	5x (C-N) -0.70		0.10
TP316N	S31651	0.08	2.0	0.045	0.030	1.0	16.0-18.0	10.0-14.0	2.0-3.0			0.10-0.16
TP316LN	S31653	0.035	2.0	0.045	0.030	1.0	16.0-18.0	11.0-14.0	2.0-3.0			0.10-0.16
TP317	S3170	0.08	2.0	0.045	0.030	1.0	18.0-20.0	10.0-14.0	3.0-4.0
TP317L	S31703	0.035	2.0	0.045	0.030	1.0	18.0-20.0	11.0-15.0	3.0-4.0
TP321	S3210	0.08	2.0	0.045	0.030	1.0	17.0-19.0	9.0-12.0				0.10
TP321H	S32109	0.04-0.10	2.0	0.045	0.030	1.0	17.0-19.0	9.0-12.0				0.10
TP347	S3470	0.08	2.0	0.045	0.030	1.0	17.0-19.0	9.0-13.0
TP347H	S34709	0.04-0.10	2.0	0.045	0.030	1.0	17.0-19.0	9.0-13.0
TP347LN	S34751	0.05-0.02	2.0	0.045	0.030	1.0	17.0-19.0	9.0-13.0			0.20- 50.0	0.06-0.10
TP348	S3480	0.08	2.0	0.045	0.030	1.0	17.0-19.0	9.0-13.0
TP348H	S34809	0.04-0.10	2.0	0.045	0.030	1.0	17.0-19.0	9.0-13.0
